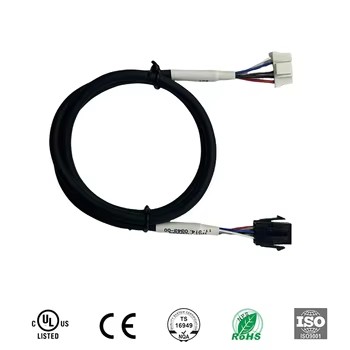

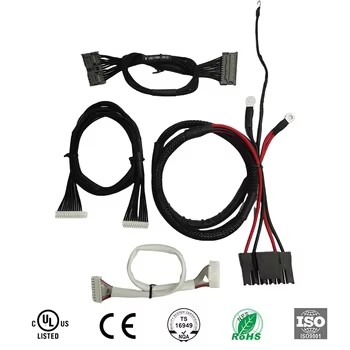

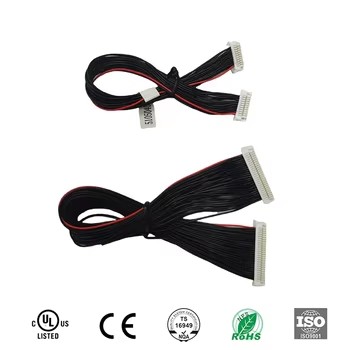

Hybrid Power and Signal Wiring Harness | Cable Assembly OEM Solutions

Hybrid power and signal wiring harness is designed for integrated transmission of power and data in complex systems. This hybrid power and signal wiring harness ensures stable performance with excellent shielding and precision manufacturing. The hybrid power and signal wiring harness is widely used in industrial automation, robotics, medical equipment, and high-end electronic applications.

Hybrid Power and Signal Wiring Harness – Technical Specifications

Function: Integrated power and signal transmission in one harness

Voltage Rating: ≤600V AC/DC (customizable)

Current Capacity: 0.5A–50A depending on configuration

Signal Type: Data, control, and low/high frequency signals supported

Conductor: High-purity tinned copper for stable conductivity

Insulation: PVC / TPE / Silicone / PUR options available

Temperature Range: -40°C to +105°C (up to +200°C optional)

Shielding: Multi-layer EMI/RFI shielding for signal integrity

Wire Gauge: 32AWG–10AWG customizable

Connectors: OEM terminals, M8/M12, waterproof or custom interfaces

Manufacturing: Precision crimping, soldering, overmolding optional

Testing: 100% continuity, insulation, and signal integrity testing

Protection: Flame-retardant, oil-resistant, abrasion-resistant jacket

Applications: Industrial automation, robotics, medical devices, communication systems

Features: Compact design, reduced wiring complexity, high reliability for mixed power and signal environments

Custom Signal Wiring Harness for Your Project

Need a reliable signal wiring harness for industrial equipment, robotics, medical devices, or advanced electronics?

Send HINI-Cable your drawings, specifications, or sample requirements. Our team will evaluate your project and provide a customized OEM cable assembly solution.

Contact HINI-Cable today for a custom signal wiring harness quote.
